Mail size limits exceeded - Exchange 2003

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • Mail size limits exceeded - Exchange 2003

    Problem is basically we can't receive mails exceeding 10mb externally. We're using Exchange 2003 in a Windows Server 2003 Standard. I'm aware of all the places in the Exchange admin console that can set limits, but i believe i've set them all and it's still happening. Take a look.

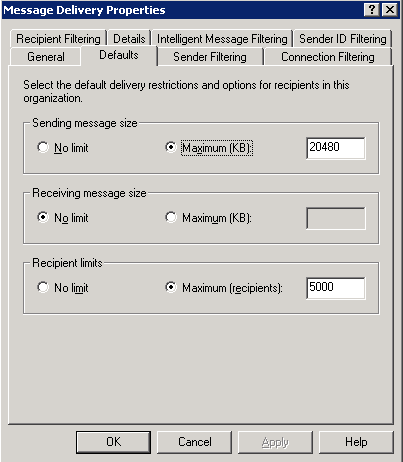

    Global Settings -> Message Delivery Properties -> Defaults

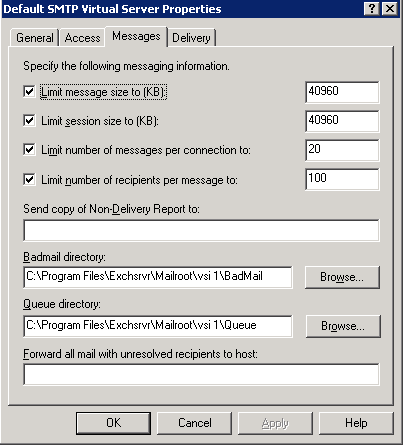

    Default SMTP Virtual Server Properties -> Messages

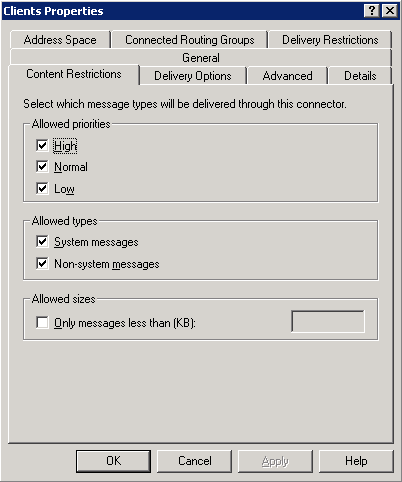

    Routing group -> Connector properties -> Content Restrictions

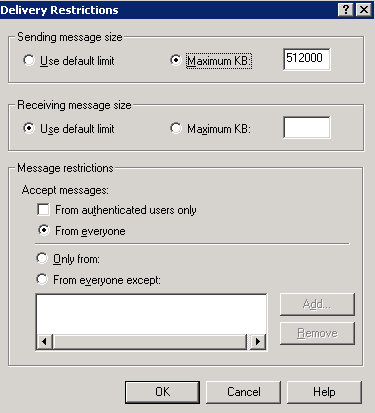

    Active Directory Users and Computers -> User properties -> Delivery Restrictions






    As you can see, every limit is ok. I'm testing sending an e-mail from my personal GMail to my company mail with an attachment of 18mb, and i'm receiving the following NDR:

    Code:
    Delivered-To: [email protected]
    Received: by 10.231.207.69 with SMTP id fx5cs11285ibb;
            Thu, 24 Feb 2011 07:54:40 -0800 (PST)
    Received: by 10.231.199.198 with SMTP id et6mr1691622ibb.13.1298562880366;
            Thu, 24 Feb 2011 07:54:40 -0800 (PST)
    MIME-Version: 1.0
    Return-Path: <>
    Received: by 10.231.199.198 with SMTP id et6mr2454205ibb.13; Thu, 24 Feb 2011
     07:54:40 -0800 (PST)
    From: Mail Delivery Subsystem <[email protected]>
    To: [email protected]
    X-Failed-Recipients: [email protected]
    Subject: Delivery Status Notification (Failure)
    Message-ID: <[email protected]>
    Date: Thu, 24 Feb 2011 15:54:40 +0000
    Content-Type: text/plain; charset=ISO-8859-1
    Content-Transfer-Encoding: quoted-printable

    Delivery to the following recipient failed permanently:

         [email protected]

    Technical details of permanent failure:=20
    Google tried to deliver your message, but it was rejected by the recipient =
    domain. We recommend contacting the other email provider for further inform=
    ation about the cause of this error. The error that the other server return=
    ed was: 552 552 4.3.1 Message size exceeds fixed maximum message size (stat=
    e 18).
    or this one:

    Code:
    This is an automatically generated Delivery Status Notification.

    Delivery to the following recipients failed.

          [email protected]




    Final-Recipient: rfc822;[email protected]
    Action: failed
    Status: 5.2.3
    X-Display-Name: My Name
    Is there anywhere else I could check in my Exchange Server? I've tested sending this same mail from my company mail to my GMail, and it works just fine.

    Thanks!

  • #2
    Re: Mail size limits exceeded - Exchange 2003

    When did you make the change? Exchange won't see the new limit immediately. You can verify what limit the SMTP connector of the Exchange server is currently using by establishing a telnet session to port 25 of the server and sending the EHLO command.

    Comment


    • #3
      Re: Mail size limits exceeded - Exchange 2003

      Originally posted by joeqwerty View Post
      When did you make the change? Exchange won't see the new limit immediately. You can verify what limit the SMTP connector of the Exchange server is currently using by establishing a telnet session to port 25 of the server and sending the EHLO command.
      It's been a couple of hours now. When I telnet there, i get an error using EHLO:

      ehlo
      500 5.3.3 Unrecognized command

      Comment


      • #4
        Re: Mail size limits exceeded - Exchange 2003

        Is there a firewall between you and the server? If so, try telnet directly from the server.

        Comment


        • #5
          Re: Mail size limits exceeded - Exchange 2003

          I've tried both, from home (externally) and from the office (internally). I get the same error.

          Comment


          • #6
            Re: Mail size limits exceeded - Exchange 2003

            Have you tried it directly from the server?

            Comment


            • #7
              Re: Mail size limits exceeded - Exchange 2003

              Originally posted by joeqwerty View Post
              Have you tried it directly from the server?
              Oh cool. Thanks for that. Anyway, here's the output:

              Code:
              220 mail.xxxx.com Microsoft ESMTP MAIL Service, Version: 6.0.3790.4675 rea
              dy at  Thu, 24 Feb 2011 17:01:22 -0300
              ehlo
              250-mail.xxxx.com Hello [127.0.0.1]
              250-TURN
              250-SIZE 41943040
              250-ETRN
              250-PIPELINING
              250-DSN
              250-ENHANCEDSTATUSCODES
              250-8bitmime
              250-BINARYMIME
              250-CHUNKING
              250-VRFY
              250-X-EXPS GSSAPI NTLM LOGIN
              250-X-EXPS=LOGIN
              250-AUTH GSSAPI NTLM LOGIN
              250-AUTH=LOGIN
              250-X-LINK2STATE
              250-XEXCH50
              250 OK

              Comment


              • #8
                Re: Mail size limits exceeded - Exchange 2003

                OK, the SMTP connector on Exchange says it's size limit is 40MB (roughly).

                In addition, you don't have to do the conversion using 1024 bytes when configuring the limits, Exchange will do that. So if you want the size limit to be 40MB set it to 40000 and Exchange will "convert" it to 40960000 bytes.

                Comment


                • #9
                  Re: Mail size limits exceeded - Exchange 2003

                  I'm not doing any conversion. Those 40mb are configured in the Default SMTP Virtual Server Properties -> Messages option.

                  Still... if the limit is 40mb, why would a 18mb mail get refused?


                  Also, thanks so far for your help!

                  Comment


                  • #10
                    Re: Mail size limits exceeded - Exchange 2003

                    Hi.

                    if you want to receive email of size 20mb. Then you need to set the limit to 20MB + 33% of 20MB which is 26.6.

                    The reason is the exchange advance queueing engine, during content conversion phase the message gets expanded to 33%

                    so if you do maths with you 18mb attachment it comes out to be 22.6mb. Seems like that's why it's failing to get thru
                    Thanks & Regards
                    v-2nas

                    MCTS 2008, MCTIP, MCSE 2003, MCSA+Messaging E2K3, MCP, E2K7
                    Sr. Wintel Eng. (Investment Bank)
                    Independent IT Consultant and Architect
                    Blog: http://www.exchadtech.blogspot.com

                    Show your appreciation for my help by giving reputation points

                    Comment


                    • #11
                      Re: Mail size limits exceeded - Exchange 2003

                      Ok, so, now I have:

                      Global Settings -> Message Delivery Properties -> Defaults: No limit
                      Default SMTP Virtual Server Properties -> Messages: Still 40mb
                      Routing group -> Connector properties -> Content Restrictions: Still unchecked
                      Active Directory Users and Computers -> User properties -> Delivery Restrictions: Use Default Limit

                      Considering this parameters, limit should be just 40mb. But when i try again sending a mail with a 18mb attachment from Gmail to my company mail, i get an NDR saying:

                      Code:
                      This is an automatically generated Delivery Status Notification.

                      Delivery to the following recipients failed.

                            [email protected]




                      Final-Recipient: rfc822;[email protected]
                      Action: failed
                      Status: 5.2.3
                      X-Display-Name: My Name
                      Any thoughts?

                      Comment


                      • #12
                        Re: Mail size limits exceeded - Exchange 2003

                        Originally posted by Aresius View Post
                        I'm not doing any conversion. Those 40mb are configured in the Default SMTP Virtual Server Properties -> Messages option.

                        Still... if the limit is 40mb, why would a 18mb mail get refused?


                        Also, thanks so far for your help!
                        What I meant is that you entered 40960 because that's equal to 40 MB, but what Exchange does is to take the value you enter and multiply it by 1024 so you end up with 40960 x 1024 = 41943040 (40.96MB). What you should enter is 40000 so that Exchange takes 40000 x 1024 = 40960000 (40MB)

                        Comment


                        • #13
                          Re: Mail size limits exceeded - Exchange 2003

                          Originally posted by joeqwerty View Post
                          What I meant is that you entered 40960 because that's equal to 40 MB, but what Exchange does is to take the value you enter and multiply it by 1024 so you end up with 40960 x 1024 = 41943040 (40.96MB). What you should enter is 40000 so that Exchange takes 40000 x 1024 = 40960000 (40MB)
                          I understand now. Thanks!

                          I'll keep that in mind. 40mb is just a random limit I set for testing. Once i'm able to make this work, i'll set a more coherent and thought-thru limit.

                          In the meantime, i'm stuck with what i posted before.

                          Comment


                          • #14
                            Re: Mail size limits exceeded - Exchange 2003

                            Hi,

                            have you tried what i suggested?
                            Thanks & Regards
                            v-2nas

                            MCTS 2008, MCTIP, MCSE 2003, MCSA+Messaging E2K3, MCP, E2K7
                            Sr. Wintel Eng. (Investment Bank)
                            Independent IT Consultant and Architect
                            Blog: http://www.exchadtech.blogspot.com

                            Show your appreciation for my help by giving reputation points

                            Comment


                            • #15
                              Re: Mail size limits exceeded - Exchange 2003

                              Originally posted by v-2nas View Post
                              Hi,

                              have you tried what i suggested?
                              Hi! check a previous post of mine. I've set up a 40 mb limit and it's still not working with the same attachment in the mail.

                              Comment
