How do I install Active Directory on my Windows Server 2003 server?

First make sure you read and understand Active Directory Installation Requirements. If you don’t comply with all the requirements of that article you will not be able to set up your AD (for example: you don’t have a NIC or you’re using a computer that’s not connected to a LAN).

Note: This article is only good for understanding how to install the FIRST DC in a NEW AD Domain, in a NEW TREE, in a NEW FOREST. Meaning – don’t do it for any other scenario, such as a new replica DC in an existing domain. In order to install a Windows Server 2003 DC in an EXISTING Windows 2000 Domain follow the Windows 2003 ADPrep tip.
Windows 2000 Note: If you plan to install a new Windows 2000 DC please read How to Install Active Directory on Windows 2000.
Windows 2008 Note: Install Active Directory on Windows Server 2008 provides complete instruction details for working with Windows Server 2008.

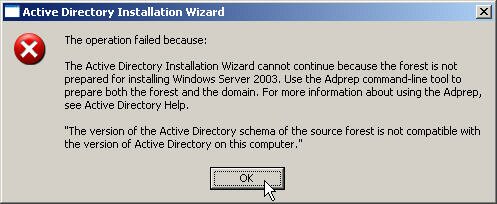

Windows Server 2003 Note: If you plan to install a new Windows Server 2003 DC in an existing AD forest please read the  page BEFORE you go on, otherwise you’ll end up with the following error:
dcpromo fail
Here is a quick list of what you must have:

  • An NTFS partition with enough free space
  • An Administrator’s username and password
  • The correct operating system version
  • A NIC
  • Properly configured TCP/IP (IP address, subnet mask and – optional – default gateway)
  • A network connection (to a hub or to another computer via a crossover cable)
  • An operational DNS server (which can be installed on the DC itself)
  • A Domain name that you want to use
  • The Windows Server 2003 CD media (or at least the i386 folder)
  • Brains (recommended, not required…)

This article assumes that all of the above requirements are fulfilled.

Step 1: Configure the computer’s suffix

(Not mandatory, can be done via the Dcpromo process).

  1. Right click My Computer and choose Properties.
  2. Click the Computer Name tab, then Change. comp id small
  3. Set the computer’s NetBIOS name. In Windows Server 2003, this CAN be changed after the computer has been promoted to Domain Controller.
  4. Click More. comp id1 small
  5. In the Primary DNS suffix of this computer box enter the would-be domain name. Make sure you got it right. No spelling mistakes, no “oh, I thought I did it right…”. Although the domain name CAN be changed after the computer has been promoted to Domain Controller, this is not a procedure that one should consider lightly, especially because on the possible consequences. Read more about it on my Windows 2003 Domain Rename Tool page. comp id2 small
  6. Click Ok.
  7. You’ll get a warning window.
  8. Click Ok.
  9. Check your settings. See if they’re correct. comp id3 small
  10. Click Ok.
  11. You’ll get a warning window.
  12. Click Ok to restart.






Step 2: Configuring the computer’s TCP/IP settings

You must configure the would-be Domain Controller to use it’s own IP address as the address of the DNS server, so it will point to itself when registering SRV records and when querying the DNS database.

Configure TCP/IP

  1. Click Start, point to Settings and then click Control Panel.
  2. Double-click Network and Dial-up Connections.
  3. Right-click Local Area Connection, and then click Properties.
    config lan small
    config lan1 small
  4. Click Internet Protocol (TCP/IP), and then click Properties. config lan4 small
  5. Assign this server a static IP address, subnet mask, and gateway address. Enter the server’s IP address in the Preferred DNS server box.Note: This is true if the server itself will also be it’s own DNS server. config lan6 smallIf you have another operational Windows 2000/2003 server that is properly configured as your DNS server (read my Create a New DNS Server for ADpage) – enter that server’s IP address instead: config lan5 small
  6. Click Advanced.
  7. Click the DNS Tab.
  8. Select “Append primary and connection specific DNS suffixes”
  9. Check “Append parent suffixes of the primary DNS suffix”
  10. Check “Register this connection’s addresses in DNS”. If this Windows 2000/2003-based DNS server is on an intranet, it should only point to its own IP address for DNS; do not enter IP addresses for other DNS servers here. If this server needs to resolve names on the Internet, it should have a forwarder configured. config lan7 small
  11. Click OK to close the Advanced TCP/IP Settings properties.
  12. Click OK to accept the changes to your TCP/IP configuration.
  13. Click OK to close the Local Area Connections properties.






Step 3: Configure the DNS Zone

(Not mandatory, can be done via the Dcpromo process).
This article assumes that you already have the DNS service installed. If this is not the case, please read Create a New DNS Server for AD.
Furthermore, it is assumed that the DC will also be it’s own DNS server. If that is not the case, you MUST configure another Windows 2000/2003 server as the DNS server, and if you try to run DCPROMO without doing so, you’ll end up with errors and the process will fail.

Creating a Standard Primary Forward Lookup Zone

  1. Click Start, point to All Programs, point to Administrative Tools, and then click DNS Manager. You see two zones under your computer name: Forward Lookup Zone and Reverse Lookup Zone.
  2. Right click Forward Lookup Zones and choose to add a new zone. int dns4 small
  3. Click Next. The new forward lookup zone must be a primary zone so that it can accept dynamic updates. Click Primary, and then click Next. int dns5 small
  4. The name of the zone must be the same as the name of the Active Directory domain, or be a logical DNS container for that name. For example, if the Active Directory domain is named “lab.dpetri.net”, legal zone names are “lab.dpetri.net”, “dpetri.net”, or “net”. int dns6 smallType the name of the zone, and then click Next.
  5. Accept the default name for the new zone file. Click Next. int dns7 small
  6. To be able to accept dynamic updates to this new zone, click “Allow both nonsecure and secure dynamic updates”. Click Next. int dns8 small
  7. Click Finish. int dns9 small







You should now make sure your computer can register itself in the new zone. Go to the Command Prompt (CMD) and run “ipconfig /registerdns” (no quotes, duh…). Go back to the DNS console, open the new zone and refresh it (F5). Notice that the computer should by now be listed as an A Record in the right pane.
If it’s not there try to reboot (although if it’s not there a reboot won’t do much good). Check the spelling on your zone and compare it to the suffix you created in step 1. Check your IP settings.

Enable DNS Forwarding for Internet connections (Not mandatory)

  1. Start the DNS Management Console.
  2. Right click the DNS Server object for your server in the left pane of the console, and click Properties. dns frwd small
  3. Click the Forwarders tab.
  4. In the IP address box enter the IP address of the DNS servers you want to forward queries to – typically the DNS server of your ISP. You can also move them up or down. The one that is highest in the list gets the first try, and if it does not respond within a given time limit – the query will be forwarded to the next server in the list. dns frwd1 small
  5. Click OK.




Creating a Standard Primary Reverse Lookup Zone

You can (but you don’t have to) also create a reverse lookup zone on your DNS server. The zone’s name will be the same as your TCP/IP Network ID. For example, if your IP address is 192.168.0.200, then the zone’s name will be 192.168.0 (DNS will append a long name to it, don’t worry about it). You should also configure the new zone to accept dynamic updates. I guess you can do it on your own by now, can’t you?
int dns10 small

Step 4: Running DCPROMO

After completing all the previous steps (remember you didn’t have to do them) and after double checking your requirements you should now run Dcpromo.exe from the Run command.

  1. Click Start, point to Run and type “dcpromo”. dcpromo00 small
  2. The wizard windows will appear. Click Next. dcpromo small2
  3. In the Operating System Compatibility windows read the requirements for the domain’s clients and if you like what you see – press Next. dcpromo01 small
  4. Choose Domain Controller for a new domain and click Next. dcpromo014 small
  5. Choose Create a new Domain in a new forest and click Next. dcpromo015 small
  6. Enter the full DNS name of the new domain, for example – kuku.co.il – this must be the same as the DNS zone you’ve created in step 3, and the same as the computer name suffix you’ve created in step 1. Click Next. dcpromo016 smallThis step might take some time because the computer is searching for the DNS server and checking to see if any naming conflicts exist.
  7. Accept the the down-level NetBIOS domain name, in this case it’s KUKU. Click Next dcpromo017 small
  8. Accept the Database and Log file location dialog box (unless you want to change them of course). The location of the files is by default %systemroot%\NTDS, and you should not change it unless you have performance issues in mind. Click Next. dcpromo06 small
  9. Accept the Sysvol folder location dialog box (unless you want to change it of course). The location of the files is by default %systemroot%SYSVOL, and you should not change it unless you have performance issues in mind. This folder must be on an NTFS v5.0 partition. This folder will hold all the GPO and scripts you’ll create, and will be replicated to all other Domain Controllers. Click Next. dcpromo07 small
  10. If your DNS server, zone and/or computer name suffix were not configured correctly you will get the following warning:This means the Dcpromo wizard could not contact the DNS server, or it did contact it but could not find a zone with the name of the future domain. You should check your settings. Go back to steps 1, 2 and 3. Click Ok.You have an option to let Dcpromo do the configuration for you. If you want, Dcpromo can install the DNS service, create the appropriate zone, configure it to accept dynamic updates, and configure the TCP/IP settings for the DNS server IP address.To let Dcpromo do the work for you, select “Install and configure the DNS server…”.Click Next.
    Otherwise, you can accept the default choice and then quit Dcpromo and check steps 1-3.
    dcpromo0181 small
  11. If your DNS settings were right, you’ll get a confirmation window. dcpromo018 smallJust click Next.
  12. Accept the Permissions compatible only with Windows 2000 or Windows Server 2003 settings, unless you have legacy apps running on Pre-W2K servers. dcpromo019 small
  13. Enter the Restore Mode administrator’s password. In Windows Server 2003 this password can be later changed via NTDSUTIL. Click Next. dcpromo020 small
  14. Review your settings and if you like what you see – Click Next. dcpromo021 small
  15. See the wizard going through the various stages of installing AD. Whatever you do – NEVER click Cancel!!! You’ll wreck your computer if you do. If you see you made a mistake and want to undo it, you’d better let the wizard finish and then run it again to undo the AD.
    dcpromo22 small dcpromo23 small
  16. If all went well you’ll see the final confirmation window. Click Finish. dcpromo24 small
  17. You must reboot in order for the AD to function properly. dcpromo013 small
  18. Click Restart now.


















Step 5: Checking the AD installation

You should now check to see if the AD installation went well.

  1. First, see that the Administrative Tools folder has all the AD management tools installed. ad check small
  2. Run Active Directory Users and Computers (or type “dsa.msc” from the Run command). See that all OUs and Containers are there. ad check1 small
  3. Run Active Directory Sites and Services. See that you have a site named Default-First-Site-Name, and that in it your server is listed. ad check2 small
  4. If they don’t (like in the following screenshot), your AD functions will be broken (a good sign of that is the long time it took you to log on. The “Preparing Network Connections” windows will sit on the screen for many moments, and even when you do log on many AD operations will give you errors when trying to perform them).int dns10 small1 = BadThis might happen if you did not manually configure your DNS server and let the DCPROMO process do it for you.
    Another reason for the lack of SRV records (and of all other records for that matter) is the fact that you DID configure the DNS server manually, but you made a mistake, either with the computer suffix name or with the IP address of the DNS server (see steps 1 through 3).Open the DNS console. See that you have a zone with the same name as your AD domain (the one you’ve just created, remember? Duh…). See that within it you have the 4 SRV record folders. They must exist.
    ad check4 small= Good
    To try and fix the problems first see if the zone is configured to accept dynamic updates.
  5. Right-click the zone you created, and then click Properties. int dns11 small
  6. On the General tab, under Dynamic Update, click to select “Nonsecure and secure” from the drop-down list, and then click OK to accept the change.You should now restart the NETLOGON service to force the SRV registration.You can do it from the Services console in Administrative tools: int dns12 small restart netlogon small
    Or from the command prompt type “net stop netlogon”, and after it finishes, type “net start netlogon”.
    Let it finish, go back to the DNS console, click your zone and refresh it (F5). If all is ok you’ll now see the 4 SRV record folders.
    If the 4 SRV records are still not present double check the spelling of the zone in the DNS server. It should be exactly the same as the AD Domain name. Also check the computer’s suffix (see step 1). You won’t be able to change the computer’s suffix after the AD is installed, but if you have a spelling mistake you’d be better off by removing the AD now, before you have any users, groups and other objects in place, and then after repairing the mistake – re-running DCPROMO.
    checkad6 small
  7. Check the NTDS folder for the presence of the required files. ad check5 small
  8. Check the SYSVOL folder for the presence of the required subfolders. ad check6 small
  9. Check to see if you have the SYSVOL and NETLOGON shares, and their location.











ad check7 small
If all of the above is ok, I think it’s safe to say that your AD is properly installed.
If not, read Troubleshooting Dcpromo Errors and re-read steps 1-4 in this article.
